The diagram below shows the core of a transformer and its input

Electricity and Magnetism (10)

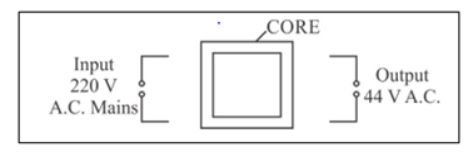

The diagram below shows the core of a transformer and its input and output connections:



1. State the material used for the core.
2. Copy and complete the diagram of the transformer by drawing input and output coils.

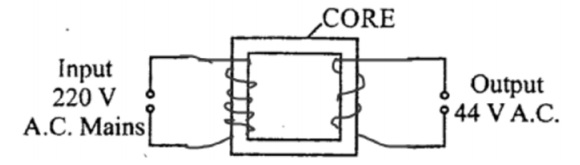

Answer

(i) laminated soft iron

(ii)
