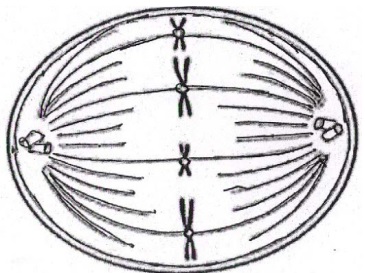

The diagram given below represents a stage during cell division

The diagram given below represents a stage during cell division. Study the same and answer the questions that follow:

1. Identify whether it is a plant cell or an animal cell.
   Give a reason in support of your answer.
2. Name the stage depicted in the diagram.
   What is the unique feature observed in this stage?
3. Name the type of cell division that occurs during:
   1. Replacement of old leaves by new ones.
   2. Formation of gametes.
4. What is the stage that comes before the stage shown in the diagram?
5. Draw a neat, labelled diagram of the stage mentioned in (iv) above keeping the chromosome number constant.

Answer

1. Plant cell/cell wall present, Aster absent, Aster present Animal cell,Centrioles /Centrosome present
2. Metaphase, Chromosomes are in the equatorial plane.
3. 1. Mitosis                                                                                                                                                                                2. Meosis
4. Prophase

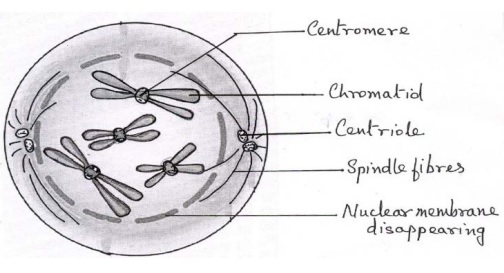

v.

• Exam Year: 2018
