The diagram given below is that of a structure present in a human kidney

Human Physiology (10)

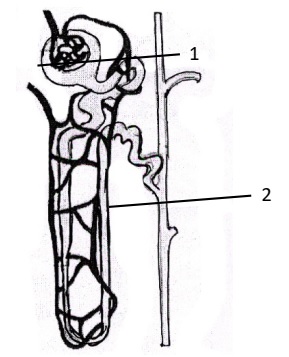

The diagram given below is that of a structure present in a human kidney.
Study the same and answer the questions that follow:

  1. Name the structure represented in the diagram.
  2. What is the liquid entering part ‘1’ called? Name two substances present in this liquid that are reabsorbed in the tubule.
  3. What is the fluid that comes to part ‘2’ called? Name the main nitrogenous waste in it.
  4. Mention the three main steps involved in the formation of the fluid mentioned in (iii) above.
  5. Name the substance which may be present in the fluid in part ‘2’ if a person suffers from Diabetes mellitus.

Answer

  1. Nephron / Uriniferous tubule / Renal tubule / Kidney tubule
  2. Glomerular filtrate, water / glucose / Sodium Chloride/Na ions/chloride ions/amino acids/ultrafiltrate/Nephric filtrate
    Urine, Urea
  3. Ultrafiltration, selective reabsorption, tubular secretion, Glomerular filtration.
  4. Glucose / Sugar / Ketones
  • Exam Year: 2018
